When measuring the thickness of various materials, two common tools are electronic and mechanical thickness gages. As a supplier of electronic thickness gages, I'm often asked about the differences between these two instruments. Today, I'll delve into the key differences between them to help you understand which one is best for your specific needs.

Working principle: The fundamental difference between electronic thickness gauges and mechanical thickness gauges lies in their working principle.

Mechanical thickness gages operate on a purely mechanical principle. They typically consist of a measuring anvil and a spindle. When the object to be measured is placed between the anvil and the spindle, the rotation of a pin or ratchet causes the spindle to move toward the anvil until it contacts the object. The measurement can then be read directly from the scale engraved on the pin or gage. For example, a micrometer is a common mechanical thickness gage that uses a screw-based mechanism to convert the spindle's linear motion into rotational motion that can be read on a scale.

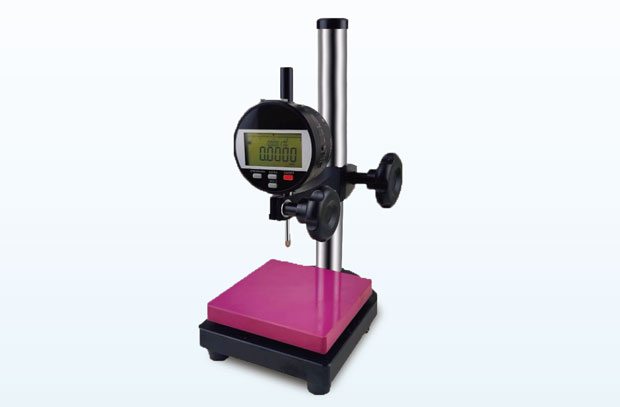

Electronic thickness gauges rely on electronic sensors to measure thickness. These sensors can be based on different technologies, such as ultrasonic, magnetic, or eddy current. Ultrasonic electronic thickness gauges operate by transmitting ultrasonic waves into the material. The time it takes for the waves to travel through the material and bounce back is measured, and the thickness is calculated based on the known speed of sound. Magnetic and eddy current thickness gauges are primarily used to measure the thickness of coatings on magnetic or non-magnetic substrates. They determine coating thickness by measuring the magnetic field or eddy currents induced in the material.

Accuracy and Precision: Accuracy and precision are crucial factors when selecting a thickness gauge, especially in industries where even small measurement errors can have serious consequences.

Mechanical thickness gages can provide relatively high accuracy, especially when properly calibrated and operated by a skilled operator. However, their accuracy is often limited by factors such as mechanical wear of components, operator reading errors, and scale resolution. For example, a typical micrometer might have an accuracy of ±0.001 mm, but this can be affected by how accurately the operator reads the scale and how well the gage is maintained.

Electronic thickness gauges generally offer higher accuracy and precision than mechanical thickness gauges. Electronic sensors can detect even small changes in measurement parameters (such as ultrasonic wave propagation time or magnetic field strength), enabling more precise measurements. Many electronic thickness gauges offer an accuracy of ±0.0001 mm or better, depending on the model and measurement principle. Furthermore, electronic thickness gauges often feature a digital display, eliminating reading errors introduced by mechanical scales.

Measuring range: Measuring range is another important consideration, as different applications may require meters with different capabilities.

Mechanical thickness gages typically have a relatively limited measurement range. For example, a standard micrometer might have a measurement range of 0 - 25 mm or 25 - 50 mm. If you need to measure a wider thickness range, you may need to use multiple thickness gages with different ranges.

Electronic thickness gauges have a wider measurement range. For example, ultrasonic electronic thickness gauges can measure thicknesses from a few millimeters to several centimeters or even greater, depending on the material type and instrument settings. This makes them more flexible in measuring materials of various thicknesses.

Ease of Use: A thickness gage's ease of use can significantly impact productivity, especially in industrial environments where measurements need to be taken quickly and efficiently.

Mechanical thickness gauges are relatively simple to use and require only basic training. However, obtaining accurate measurements requires certain skills. For example, the operator needs to apply appropriate pressure to ensure proper contact between the gauge and the object being measured, and the scale must be read carefully to avoid errors.

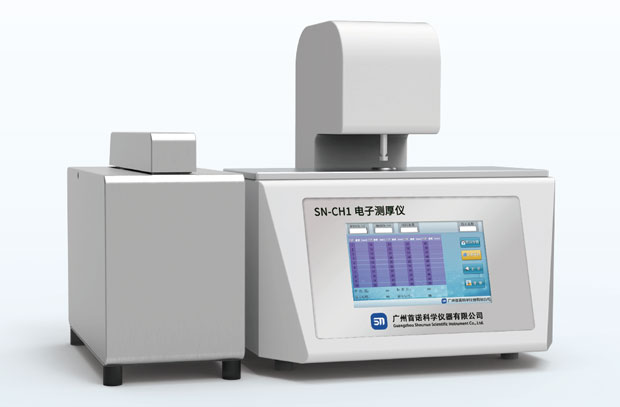

Electronic thickness gauges are generally easier to use. They often feature user-friendly interfaces, such as digital displays and intuitive menus. Some electronic thickness gauges can also store measurement data and transfer it to a computer for further analysis. Furthermore, many electronic thickness gauges have built-in features such as automatic zeroing and calibration, simplifying the measurement process.

Portability and durability: Portability and durability are important factors, especially for applications that require the instrument to be used in different locations or harsh environments.

Mechanical thickness gauges are typically compact and lightweight, making them portable. They are also relatively durable because they have fewer vulnerable electronic components. However, they are still susceptible to mechanical wear and damage, especially if dropped or mishandled.

Modern electronic thickness gauges are designed to be portable, with many models being handheld and battery-powered. However, they are more sensitive to environmental factors such as humidity, dust, and temperature fluctuations than mechanical thickness gauges. Some electronic thickness gauges feature rugged housings designed to withstand harsh conditions, but they still require more careful handling than mechanical thickness gauges.

Cost: Cost is often the determining factor in choosing a thickness gauge.

Mechanical thickness gauges are generally less expensive than electronic thickness gauges. They have a simpler design and fewer components, making them more affordable. This makes them a popular choice for applications where accuracy is less critical or for budget-conscious users.

Electronic thickness gauges are more expensive due to their advanced technology and features. Prices can vary widely depending on the measurement principle, accuracy, and additional features. However, in many cases, the higher accuracy, more sophisticated features, and higher price of an electronic thickness gauge are justified.

Applications: Both electronic and mechanical thickness gauges are widely used in various industries, but their applications may vary due to their characteristics.

Mechanical thickness gauges are commonly used in manufacturing shops, machining operations, and for quality control. They are suitable for measuring the thickness of small parts such as machined components, sheet metal, and plastics. For example, in a metalworking shop, a micrometer can be used to measure the thickness of machined steel plates to ensure they meet specifications.

Electronic thickness gauges are widely used in industries requiring high precision and non-destructive testing. They are commonly used in the automotive, aerospace, construction, and coatings industries. For example, in the automotive industry, electronic ultrasonic thickness gauges can be used to measure the thickness of engine components without disassembling them. In the coatings industry, coating thickness gauges can be used to measure the thickness of paint or other coatings on substrates to ensure good adhesion and protective properties.

Ultimately, choosing between an electronic and mechanical thickness gage depends on a variety of factors, including required accuracy, measurement range, ease of use, portability, durability, cost, and the specific application. As a supplier of thickness testing instruments and material thickness gauges , we offer a wide variety of electronic thickness gages to meet the diverse needs of our customers. If you are looking for a high-quality thickness gage, we encourage you to contact us for more information and to discuss your specific requirements. Our team of experts will be happy to assist you in selecting the best thickness gage for your application and provide you with the best service.
