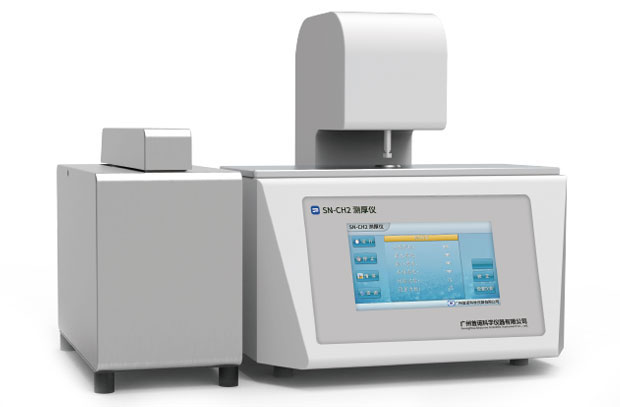

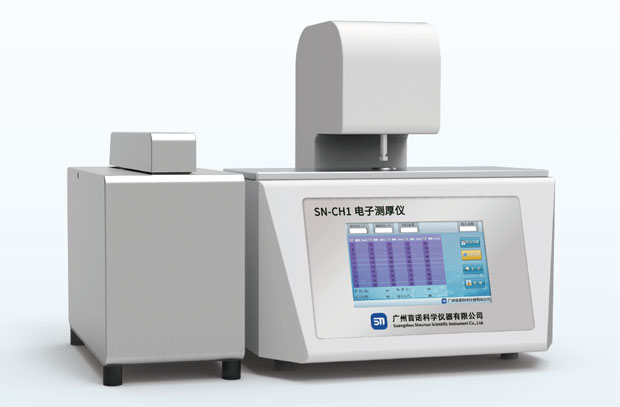

SN-CH2E Electronic Thickness Gauge

Standards Compliant

ISO 4593,ISO 534,ASTM D6988,ASTM F2251,GB/T 6672,GB/T 451.3,TAPPI T411,BS 2782-6,DIN 53370,ISO 3034,ISO 9073-2,ISO 12625-3,ISO 5084,ASTM D374,ASTM D1777,ASTM D3652,GB/T 6547,GB/T 24218.2,FEFCO No 3,EN 1942,JIS K6250,JIS K6783,JIS Z1702

Application Field

Packaging/Food/Medicine/New material/Chemical/Printing

Function and Application

It uses imported high-precision pulse sensors and is professionally suitable for the precise thickness measurement of various materials within the measuring range, including films, sheets, papers, corrugated boards, textile materials, non-woven fabrics, solid insulation materials, etc.

Test Principle

Place the sample on the test bench at the center of the test area. After operation, the sensor automatically detects the distance between the upper and lower measuring surfaces, which is the thickness of the sample.

Product Features

1.It uses imported sensors, featuring high measurement accuracy, stable readings, and reliable operation.

2.It supports both manual and automatic measurement modes.

3.The number of measurement points is adjustable, allowing for single-point or multi-point testing.

4.50 sets of test data (multiple sets of test data can be customized).

5.It displays real-time maximum, minimum, average, and current values.

6.It is equipped with a 7-inch touchscreen for intelligent interaction. The newly developed intelligent operating system offers a smartphone-like intuitive interface with clear operational logic.

Technical Parameters

Item

Parameter

Measuring range

0 - 8mm

Resolution

0.1μm

Feed pitch

0 - 100mm

Number of measuring points

0 - 50 (point number adjustable)

Measuring force

0.5N

Measuring head

Φ5mm (customizable)

Working environment

Temperature 23±2°C, humidity 55±20%RH

Power supply

AC 220V/50Hz

Dimensions

350mm×300mm×380mm

Configure

Instrument Configuration

One main unit, one miniature printer, a power cord.

User Provided

compressed air

Deliver,Shipping And Serving

Pre-Sales Services

Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.

In-Sales Services

Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.

After-Sales Services

In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
