In the field of materials testing, drop ball impact testers play a vital role in evaluating the impact resistance of various materials. One of the keys to their operation is the accuracy of impact time measurement. As a supplier of drop ball impact testers, understanding and ensuring the accuracy of this measurement is crucial to providing reliable test results to our customers.

The significance of impact time measurements

Impact time measurements on a drop ball impact tester provide insight into a material's behavior under impact. This helps determine how quickly a material responds to impact, which correlates closely with mechanical properties such as toughness, ductility, and brittleness. For example, a material with a shorter impact time may indicate greater stiffness and less energy absorption, while a material with a longer impact time may indicate greater energy absorption.

Accurately measuring impact time is crucial in industries such as automotive, aerospace, and packaging. In the automotive industry, it's used to test the safety performance of vehicle components. Accurately measuring impact time helps engineers design better-performing airbags and bumpers. In the aerospace industry, it ensures the reliability of aircraft components under high-impact conditions. In the packaging industry, it helps determine the suitability of packaging materials to protect products during transportation.

Factors affecting the accuracy of impact time measurement

Sensor technology

The type of sensor used in a drop ball impact tester is crucial. Accurately measuring the impact time requires high-quality sensors with fast response times and high sensitivity. For example, piezoelectric sensors are widely used due to their ability to quickly convert mechanical stress into an electrical signal. However, the performance of these sensors can be affected by factors such as temperature, humidity, and mechanical vibration.

Ball characteristics

The characteristics of the ball used in the impact test, such as its mass, diameter, and material, can also affect the accuracy of the impact time measurement. A heavier ball may produce a greater impact force, but it may also cause greater specimen deformation, affecting the measurement. Similarly, the surface roughness and hardness of the ball can affect the contact time during the impact.

Sample conditions

The condition of the specimen, including its shape, size, and material properties, is another important factor. Irregularly shaped specimens can result in uneven contact with the ball, leading to inaccurate impact time measurements. Furthermore, the specimen's mechanical properties, such as its elasticity and plasticity, can affect its response to impact and, therefore, the measured impact time.

Measurement method and its accuracy

Electrical contact method

One common method for measuring impact time is the electrical contact method. In this method, electrical contacts are placed on the ball and the specimen. When the ball strikes the specimen, the circuit is closed, and the time it takes for this to occur is recorded. This method is relatively simple and cost-effective, but it can have limitations in terms of accuracy. Electrical contact can be affected by factors such as surface contamination and contact resistance, leading to measurement errors.

Optical methods

The optical method uses a light sensor to detect the moment of impact. When the ball strikes the sample, the light beam is interrupted, and the duration of the interruption is recorded as the impact time. Compared to the electrical contact method, this method offers greater accuracy because it is less affected by surface conditions. However, it requires a clear line of sight between the light source and sensor; any obstruction can cause measurement errors.

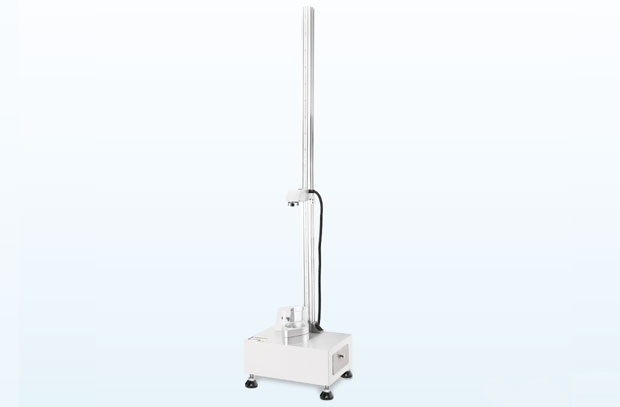

Film Drop Dart Impact Tester

High-speed photography

High-speed cameras can capture impact events at extremely high frame rates. By analyzing the frames, the exact moment and duration of the impact can be determined. This method allows for intuitive documentation of the impact process and provides highly accurate measurements. However, this method is relatively expensive and requires complex image processing software.

Ensuring the Accuracy of Drop Ball Impact Testers

As a supplier of drop ball impact testers, we take several measures to ensure the accuracy of our product's impact time measurement.

Selection of mass sensors

We carefully select high-quality sensors for our testers. Our R&D team conducts extensive research on different sensor technologies to select those with the best performance in terms of response time, sensitivity, and stability. For example, we use advanced piezoelectric sensors and regularly calibrate them to maintain their accuracy.

Calibration and verification

We offer a comprehensive calibration service for drop ball impact testers. Our calibration process adheres to international standards and procedures. We use reference specimens with known mechanical properties to verify the accuracy of impact time measurements. Regular calibration helps identify and correct any deviations in the measurement system.

User training and support

We offer a user training program to ensure that our customers are able to operate the drop ball impact tester correctly. Our training covers how to prepare specimens, set up the tester, and interpret measurement results. We also provide technical support to assist our customers with any questions they may have during impact time measurements.

Applications of our falling ball impact testers

Our falling ball impact testers are used across a wide range of industries. In the plastics industry, they are used to test the impact resistance of plastic films. Our film dart impact tester is specifically designed for this purpose. It precisely measures the impact time and determines the energy required to break the plastic film.

In the packaging industry, our dart impact testers are used to evaluate the performance of packaging materials. By measuring the impact duration, we can assess how well the packaging protects the product during handling and transportation.

For more specialized applications, we offer free-fall dart impact testers. They are suitable for testing materials of varying shapes and sizes and can provide precise impact time measurements for a wide range of materials.

in conclusion

Accurate impact time measurement in a drop ball impact tester is a key factor in ensuring reliable test results. As a supplier, we are committed to providing high-quality testing machines with precise impact time measurement capabilities. We understand the importance of impact time measurement across various industries and are committed to continuously improving our products and services.

If you are interested in our drop ball impact testers or have any questions about impact time measurement, please feel free to contact us for more information and to discuss your specific needs. We look forward to working with you and providing you with the best testing solutions.

refer to

ASTM International Standard. “Standard Test Method for Impact Resistance of Plastic Films by Free-Falling Dart Method.” ASTM D1709-19.

ISO 7765-1:2004. “Plastics — Film and sheeting — Determination of impact resistance by the free-falling dart method — Part 1: Ladder method.”

Smith, JK and Johnson, RL. “Advanced Impact Testing Techniques.” Journal of Materials Testing and Evaluation, Vol. 15, No. 3, 2008.
