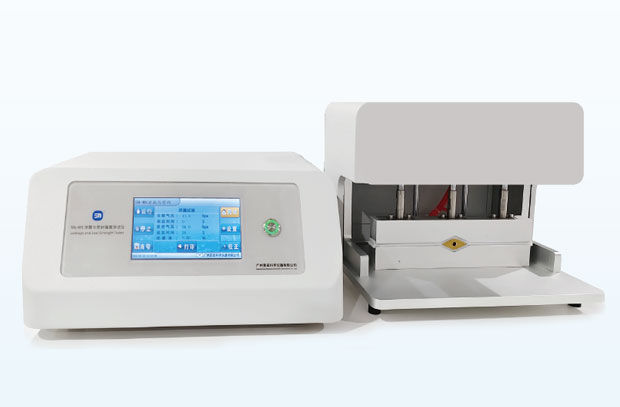

SN-XME Leakage and Seal Strength Tester

Standards Compliant

GB 10440, GB 18454, GB 19741, GB 17447, ASTM 1140, ASTM F2054, ISO 11607-1, ISO 11607-2, GB/T 17876, GB/T 10004,GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002

Application Field

Packaging/Food/Medicine/New material/Chemical/Printing

Function and Application

SN-XME Leakage and Seal Strength Tester: It is used to detect the sealing condition, leakage amount and inflation burst strength of plastic packaging bags, and is applied to industries such as packaging, food, pharmaceuticals, and daily chemicals.

Test Principle

Inflate and pressurize the packaging bag and maintain the pressure for a certain period of time. Measure the change in the internal pressure of the bag to detect the sealing condition of the packaging bag, and calculate the leakage amount. Inflate and pressurize the packaging bag until it bursts, and measure the maximum required pressure to evaluate its burst strength.

Product Features

1.Pneumatic fixture ensures a good sealing effect at the bag mouth.

2.Full-automatic testing, including automatic pressurization and pressure maintenance, automatic calculation, and automatic stop.

3.Manual pause and manual end functions are available.

4.Liquid crystal display screen shows the test data and working status.

5.Built-in printer can print the test report.

6.Customizable fixtures can be provided to adapt to bag mouths of different sizes and specifications.

Technical Parameters

Item

Parameter

Sealing test range

0 - 1MPa

Leakage test range

0 - 50KPa

Precision

0.5%

Pocket size range

0 - 300mm (other sizes can be customized)

Air source

Compressed air, 0.4 - 0.9MPa

Air interface

Φ8mm air pipe

Net weight

25kg

Power supply

AC 220V/50Hz

Fixture size

385mm×220mm×295mm (other sizes can be customized)

Configure

Instrument Configuration

Main unit (with pneumatic fixture), power cord, air tube

User Provided

Compressed air

Deliver,Shipping And Serving

Pre-Sales Services

Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.

In-Sales Services

Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.

After-Sales Services

In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
