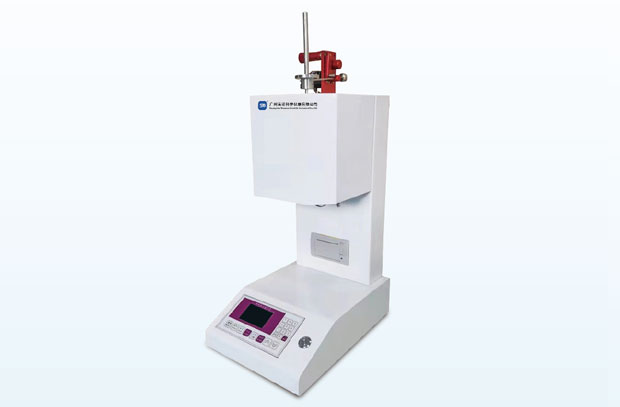

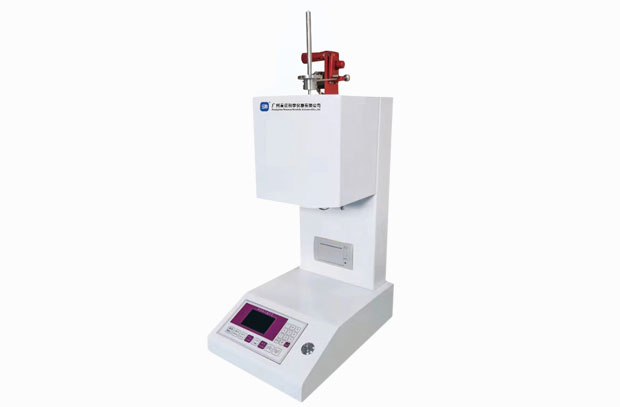

SN-RR1E Melt Flow Index Tester

Standards Compliant

GB/T9643, GB/T3682, JB/T5456, ISO1133

Application Field

Packaging/Food/Medicine/New material/Chemical/Printing

Function and Application

The melt index tester is used to measure the melt mass flow rate (MFR; unit: g/10min) of thermoplastic plastics. It is suitable for the determination of the melt index at high temperatures of various polymer plastic raw materials such as polyethylene, polystyrene, polypropylene, ABS resin, polyoxymethylene resin, polycarbonate, nylon, fluoroplastic, etc. It is widely applied in industries such as the production of plastic raw materials, plastic products, petrochemical industry, as well as relevant institutions of higher learning, scientific research departments, and commodity inspection departments.

Test Principle

Under the specified temperature conditions, a high-temperature heating furnace is used to bring the tested material to a molten state. The tested material in the molten state undergoes an extrusion test through a small hole of a certain diameter under the load gravity of the specified weight. In the plastic production of industrial enterprises and the research of scientific research institutions, the "melt (mass) flow rate" is often used to represent the physical properties such as the fluidity and viscosity of polymer materials in the molten state. The so-called melt index refers to the extrusion amount within 10 minutes converted from the average weight of each segment of the extruded sample.

Product Features

Determined by the mass method

Technical Parameters

Item

Parameter

Test method

Mass method/Volume method

Temperature range

Room temperature + 10 ~ 450°C

Temperature Fluctuation

±0.2°C

Temperature distribution

≤0.5°C

Temperature resolution

0.1°C

Temperature recovery time after feeding

≤4min

Cutting method

Automatic timing cutting (0.1~ 999s), manual cutting

Inner diameter of orifice

Φ2.095±0.005mm

Inner diameter of barrel

Φ9.550±0.025mm

Standard load

Eight grades from 3.187 ~ 211.82N, load accuracy ≤±0.5%

Working environment

10°C ~40°C, 30% ~ 80%RH

Instrument Configuration

One main unit, one set of weights, one die, one cleaning rod, one set of tools,a mini printer.

Deliver,Shipping And Serving

Pre-Sales Services

Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.

In-Sales Services

Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.

After-Sales Services

In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
