Function and Use

Applicable to the packaging industry, papermaking industry, film manufacturers, packaging material testing agencies, etc. to determine the static friction coefficient and dynamic friction coefficient of plastic film, rubber, paper, cardboard, woven bags, wood, coating and other materials during sliding. By determining the size of the friction coefficient, its smoothness, opening difficulty and uniformity can be judged, so as to correctly guide production and control and adjust the production process.

Test Principle

Cut the sample into two pieces, one of which is placed on the workbench with a sample clamp, and the other piece wraps the slider, and then the slider is placed on the hanging hole of the sensor, so that the sample moves under the gravity of the slider, that is, the two test surfaces move relative to each other. The force signal measured by the sensor is amplified by the integrator and sent to the recorder, and the dynamic friction coefficient and static friction coefficient are recorded separately.

Conform to standards

GB/T 10006 ASTM D1894 TAPPI T816 ISO 8295 GB/T 17200

Instrument Features

1. Stable performance and accurate test results

2. Simple operation and thermal printing of test reports

3. Longer life and better performance.

4. Large touch screen display, easy to touch, more accurate data.

5. With point function, can record data at a certain point.

6. 20 sets of data and print together.

6. Calibration requires a password to prevent accidental modification.

Can be connected to computer software to print A4 report.

Technical parameters

Force measurement range: 0-2N (customizable)

Accuracy: 0.5 level

Sample thickness: ≤ 2 mm (customizable)

Coefficient measurement range: 0.001～0.999

Slider size: 63 mm×63 mm

Test speed: 0-300mm infinitely variable speed

Slider mass: 200 g (customizable)

Work surface size: 200 mm×470 mm

Measurement error: ±2%

Power supply: AC 220V, 50 HZ

Instrument configuration

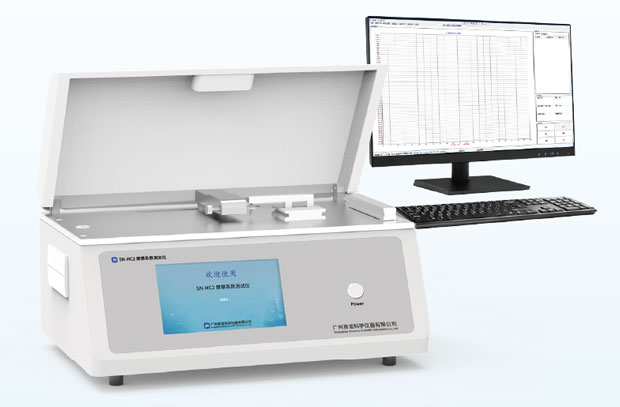

One host, one micro printer, one power cord, one slider
