Function and Use

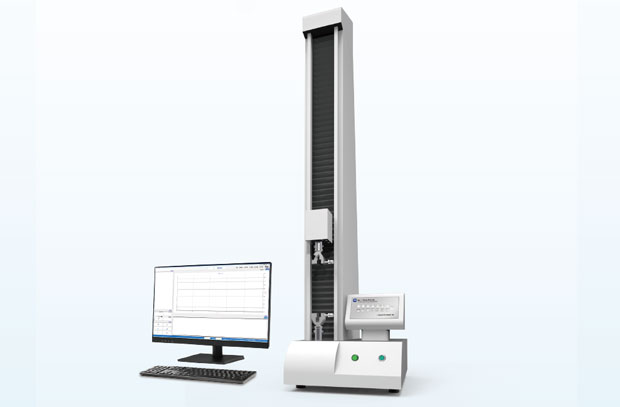

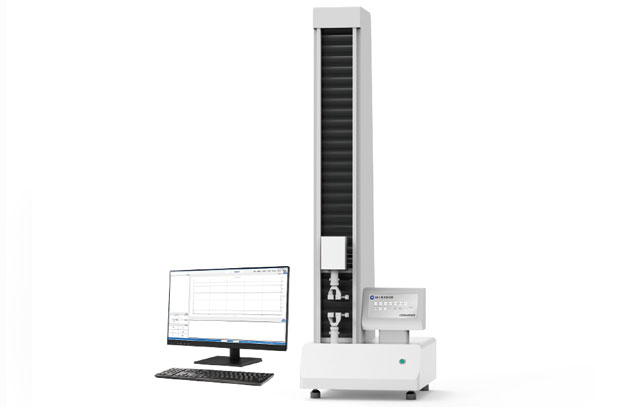

The SN-1 universal electronic tensile testing machine is suitable for testing the mechanical properties of various plastic films, paper aluminum-plastic composite films, tapes, soft packaging materials, rubber sheets, paper, non-woven fabrics, etc. for stretching, peeling, heat sealing, tearing, puncture, stiffness, compression, bending, shearing, etc. It has the advantages of high precision, convenient operation, intuitiveness, reliability and wide application. It meets the requirements of the national technical supervision department for test technology and is widely used in plastic film, food, and pharmaceutical production enterprises for product quality control and testing institutions, and scientific research and teaching experiments in schools.

Testing Principle

The electronic universal tensile testing machine uses electronic sensors to convert the force signals generated during the test into electrical signals, and then the computer collects and processes the data, and calculates the mechanical performance indicators of the sample such as stretching, compression, and bending through software.

Comply with standards

GB/T8946, GB 8808, GB 13022, GB/T1040, GB4850, GB/T7753, GB/T7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GBT 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358, QB/T 1130

Instrument features

1. Simple operation and accurate experimental data;

2. Complete experimental functions, such as stretching, bending, puncture, sealing, peeling, heat sealing, tearing, bending, shearing, elastic modulus and other experiments can be performed;

3. The force range of 0-500N is for flexible packaging material testing;

4. Automatically save the experimental results, and the printer can be connected to print the test report;

5. The core adopts imported components with high precision;

6. The test speed and fixture distance can be set according to customer requirements.

Technical parameters

Measuring range: 0–500 N, (other ranges can be selected)

Elongation: 1250%

Test speed: –500mm/min (stepless speed change)

Displacement accuracy: within ±0.5% of the indicated value

Accuracy: 0.5 level

Force resolution: 0.01N

Effective experimental stroke: 800mm

Power supply: AC220V / 50 HZ

Power: 1000W

Dimensions: 650(L)mm×650(W)mm×1300(H)mm

Weight: 75 KG

Instrument configuration

One host, one set of tensile fixtures, one set of puncture fixtures, one set of professional software, one power cord, one sampling plate.

Customer-provided: one computer, one printer.
