Hi everyone! As a supplier of gas chromatography systems, I'm often asked about the different components in these systems. One of the most frequently asked questions is the thermal conductivity detector (TCD) in a gas chromatography system. So, let's take a deeper look at what it is and why it's so important.

What is a thermal conductivity detector?

A thermal conductivity detector (TCD) is a key component of a gas chromatography system. It measures the thermal conductivity of gases. But what does this mean? Thermal conductivity essentially refers to a gas's ability to transfer heat. Different gases have different thermal conductivities, and the TCD uses this property to detect and analyze them.

In short, here's how it works. A TCD contains heated filaments. When a sample gas mixed with a carrier gas flows through these filaments, the heat transfer through the filaments varies based on the thermal conductivity of the sample gas. If the thermal conductivity of the sample gas differs from that of the carrier gas, the temperature of the filaments changes. This temperature change causes a change in the filament's resistance, which can be measured and used to generate a signal. This signal can then be used to identify and quantify the components in the sample gas.

Why is TCD so useful?

One of the greatest advantages of the TCD is its versatility. It can detect virtually any compound whose thermal conductivity differs from that of the carrier gas. This makes it ideal for analyzing a wide range of samples, from simple gas mixtures to more complex organic compounds. Whether you work in a research laboratory, an environmental testing facility, or the quality control department of a chemical plant, the TCD is a very useful tool.

Another advantage is its non-destructive nature. Unlike other detectors in gas chromatography systems, TCDs do not destroy the sample during analysis. This means you can collect the sample after analysis for further testing if needed.

TCDs are also relatively simple to use and maintain. They don't require any special reagents or radioactive materials, making them a cost-effective option in the long run. You don't need to worry about handling hazardous materials or complex calibration procedures.

How does TCD work with a gas chromatography system?

In a gas chromatography system, the TCD is typically located at the end of a separation column. First, a sample is injected into the system and carried through the column by a carrier gas. As the sample flows through the column, its components are separated based on their interaction with the stationary phase within the column.

When the separated components reach the TCD, the detector measures their thermal conductivity and generates signals. These signals are then sent to the data system to generate a chromatogram. A chromatogram is a graph showing the peaks corresponding to the different components in the sample. By analyzing information such as peak height and peak area, the identity and amount of the components in the sample can be determined.

Comparison of TCD with other detectors

Several other types of detectors are used in gas chromatography systems, such as flame ionization detectors (FIDs), electron capture detectors (ECDs), and mass spectrometers (MSs). Each detector has its own advantages and disadvantages.

Compared to the FID, the TCD is more versatile. While the FID is primarily used to detect organic compounds that can be ionized in a flame, the TCD can detect a wider range of compounds, including inorganic gases. However, the FID is more sensitive to organic compounds than the TCD.

ECD is very sensitive to compounds containing electronegative atoms, such as halogens. However, it is not as versatile as TCD. TCD can detect both electronegative and non-electronegative compounds.

Mass spectrometers are very powerful detectors that can provide detailed information about the molecular structure of components in a sample, but they are more expensive and complex to operate than TCDs.

Applications of TCD

TCD has a wide range of applications across various industries. In the environmental field, it is used to analyze air pollutants such as carbon monoxide, carbon dioxide, and nitrogen oxides. By accurately measuring the levels of these pollutants, we can monitor air quality and take appropriate measures to protect the environment.

In the food and beverage industry, TCD can be used to analyze the gas composition in packaging. For example, it can detect the oxygen and carbon dioxide content in food packaging to ensure the freshness and quality of the product.

In the petrochemical industry, TCDs are used to analyze the composition of natural gas, refined gas, and other hydrocarbon mixtures. This helps with quality control, process optimization, and safety monitoring.

Our gas chromatography system uses TCD

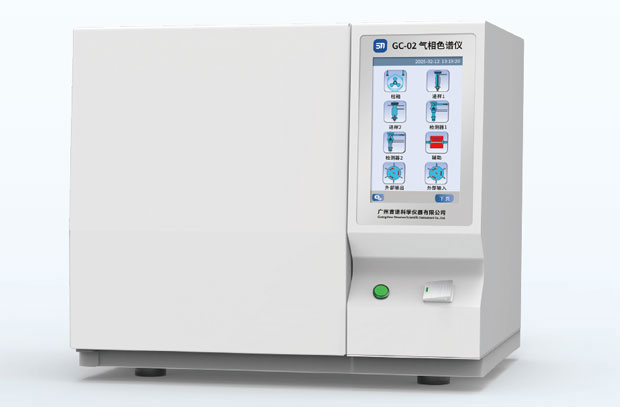

Our company offers high-quality gas chromatography systems equipped with advanced TCDs. Our gas chromatographs are designed to provide accurate and reliable results. They feature a user-friendly interface that makes it easy for operators to set up and run analyses.

Our gas chromatographs use advanced technology to ensure high performance and stability. The TCD in the gas chromatograph is carefully calibrated to provide precise measurement results.

We also offer a wide range of chromatography equipment that can be customized to your specific needs. Whether you are looking for a system for small-scale research or large-scale industrial production, we have what you need.

Summary and expansion

This is a brief overview of thermal conductivity detectors in gas chromatography systems. They are versatile and practical detectors that play a vital role in gas analysis. If you are looking for a gas chromatography system equipped with a reliable TCD, we would be happy to discuss your needs. Whether you have any questions about our products, require more information, or would like to discuss potential purchases, please feel free to contact us. We are ready to help you find the perfect solution for your gas analysis needs.

reference

McMaster, MC (2008). Fundamentals of Gas Chromatography. Wiley - Interscience.

Harris, DC (2016). Quantitative Chemical Analysis. WH Freeman and Company.

Skoog, DA, West, DM, Holler, FJ, & Crouch, SR (2014). Fundamentals of analytical chemistry. Cengage Learning.
